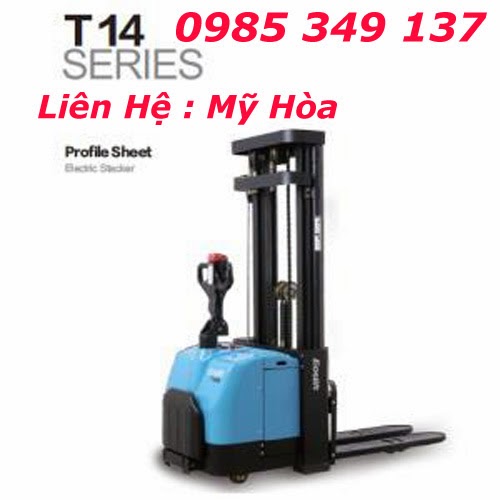

Manufacturer type designation
|
T1414/20/26
|
T1430/33/36/40
|
T1426/30/33DFL
| ||
Drive unit
|
electric
|
electric
|
electric
| ||
Operator type
|
stand on
|
stand on
|
stand on
| ||
Rated capacity/ Tải trọng
|
kg
|
1400
|
1400
|
1400
| |
Load centre distance/ Tâm tải
|
mm
|
600
|
600
|
600
| |
Wheel base
|
mm
|
1325
|
1325
|
1325
| |
Service weight (with battery)
|
kg
|
1080/1130/1180
|
1230/1280/1330/1380
|
1180/1230/1280
| |
Tyres type/ Chất liệu bánh
|
PU
|
PU
|
PU
| ||
Tyre size, front
|
mm
|
80*70
|
80*70
|
80*70
| |
Tyre size, rear
|
mm
|
115*55
|
115*55
|
115*55
| |
Wheels number front/rear
|
4/2+1
|
4/2+1
|
4/2+1
| ||
Lowered mast height
|
mm
|
1185/1535/1850
|
1980/2135/2335/2500
|
1850/1980/2135
| |
Free lift
|
mm
|
100
|
100
|
1207/1520/1620
| |
Lift height/ Chiều cao nâng
|
mm
|
1400/2000/2600
|
3000/3300/3600/4000
|
2600/3000/3300
| |
Extended mast height
|
mm
|
1900/2500/3000
|
3500/3800/4100/4500
|
3100/3500/3800
| |
Height of tiller in drive position min./max.
|
mm
|
1000/1350
|
1000/1350
|
1000/1350
| |
Lowered height(fork)
|
mm
|
85
|
85
|
85
| |
Overall length (platform fold/unfold)
|
mm
|
2050/2470
|
2050/2470
|
2050/2470
| |
Overall width
|
mm
|
850
|
850
|
850
| |
Width over forks
|
mm
|
550/685
|
550/685
|
550/685
| |
Ground clearance ,centre of wheel base
|
mm
|
30
|
30
|
30
| |
Min. Aisle width 1000x1200 (platform fold)
|
mm
|
2460
|
2460
|
2460
| |
Min. Aisle width 800x1200 (platform fold)
|
mm
|
2430
|
2430
|
2430
| |
Turning radius (platform unfold)
|
mm
|
1580
|
1580
|
1580
| |
Travel speed, loaded/unloaded
|
km/h
|
5/5
|
5/5
|
5/5
| |
Lift speed, loaded/unloaded
|
mm/s
|
130/230
|
130/230
|
130/230
| |
Lowering speed, laden / unladen
|
mm/s
|
130/230
|
130/230
|
130/230
| |
Max. gradient performance, laden / unladen
|
%
|
5/7
|
5/7
|
5/7
| |
Service brake
|
electromagnetic
|
electromagnetic
|
electromagnetic
| ||
Drive motor rating S260 min.
|
kW
|
AC 1.5
|
AC 1.5
|
AC 1.5
| |
Lift motor rating at S315%
|
kW
|
DC 3
|
DC 3
|
DC 3
| |
Battery voltage, nominal capacity
|
V/Ah
|
24 / 280
|
24 / 280
|
24 / 280
| |
Type of drive control
|
Impulse
|
Impulse
|
Impulse
|
